Energy Efficiency Optimization Design for PVC-O Production Lines

Modern PVC-O extrusion lines typically achieve a specific energy consumption of around 100–120 Wh per kilogram of pipe produced. This figure comes from industry benchmarks for efficient parallel twin-screw systems running inline biaxial orientation.







The following are the energy-saving optimization designs of our PVC-O pipe extrusion line:

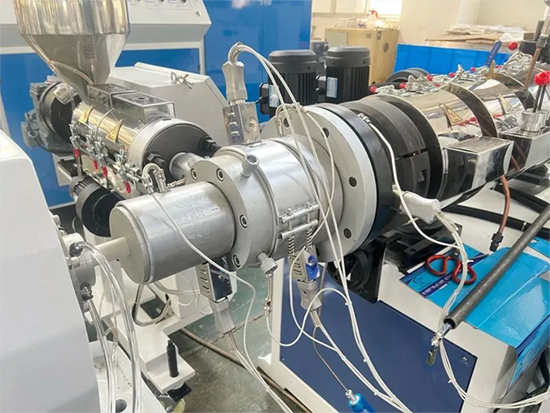

Parallel Twin-Screw Extruders with Optimized Geometry

Parallel twin-screw designs (like Polytime’s PLPS series) provide better shear distribution and melt homogeneity at lower temperatures and speeds. Advanced screw profiles reduce friction heat generation by 15–20%, allowing more of the drive energy to go toward output rather than waste heat. Variable frequency drives (VFDs) on the main motor adjust power precisely to load, cutting idle consumption by up to 20–30% during startup or speed changes.

Lower Processing Temperatures Inline PVC-O processes often run at reduced melt temperatures (thanks to efficient mixing and precise control), which directly lowers the energy needed to heat the material. Balanced screw designs avoid excessive cooling requirements, so less energy is removed and wasted—some advanced lines report 10–15% savings here alone.

Efficient Vacuum Calibration and Cooling

Dual-chamber vacuum tanks with optimized water flow and recirculation systems use less pump power while maintaining tight dimensional control. Servo-driven haul-off units synchronize speed without constant high-torque draw, further reducing auxiliary energy use.
